Pocket Sized L4 Model
General Specification :
- Enclosure : IP65(NEMA4)
- Structure : Nylon + Glass Fiber
- Operating Temperature : -45℃ ~ +80℃
- Relay : 15A , 12-24 VDC (DC POWER)
- ID Code 32 bit
- Hamming distance > 4
- Static > 15 KV
- Remote ID Code Setting
- Operating range : up to 100M
- Function programmable
- FCC Part 15 - no license required
- Sensitivity: Approximately -105 dBm
Transmitter unit
- L x W x H: 120 x 55 x 25 mm
- Weight: 155g (w/batteries)
- 2 AA size batteries
Receiver Unit
- L x W x H: 161 x 74 x 52 mm
- Weight: 1,100g (w/out cable)
- Input Voltage: DC type: 12~24V
- Shock resistance

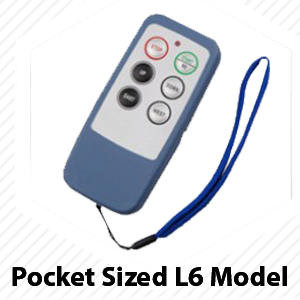

Pocket Sized L6 Model
General Specification :
- Enclosure : IP65(NEMA4)
- Structure : Nylon + Glass Fiber
- Operating Temperature : -45℃ ~ +80℃
- Relay : 15A , 12-24 VDC (DC POWER)
- ID Code 32 bit
- Hamming distance > 4
- Static > 15 KV
- Remote ID Code Setting
- Operating range : up to 100M
- Function programmable
- FCC Part 15 - no license required
- Sensitivity: Approximately -105 dBm
Transmitter unit
- L x W x H: 120 x 55 x 25 mm
- Weight: 155g (w/batteries)
- 2 AA size batteries
Receiver Unit
- L x W x H: 161 x 74 x 52 mm
- Weight: 1,100g (w/out cable)
- Input Voltage: DC type: 12~24V
- Shock resistance

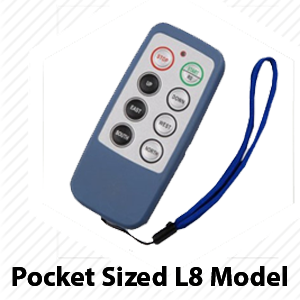

Pocket Sized L8 Model
General Specification :
- Enclosure : IP65(NEMA4)
- Structure : Nylon + Glass Fiber
- Operating Temperature : -45℃ ~ +80℃
- Relay : 15A, 12-24 VDC (DC POWER)
- ID Code 32 bit
- Hamming distance > 4
- Static > 15 KV
- Remote ID Code Setting
- Operating range : up to 100M
- Function programmable
- FCC Part 15 - no license required
- Sensitivity: Approximately -105 dBm
Transmitter unit
- L x W x H: 120 x 55 x 25 mm
- Weight: 155g (w/batteries)
- 2 AA size batteries

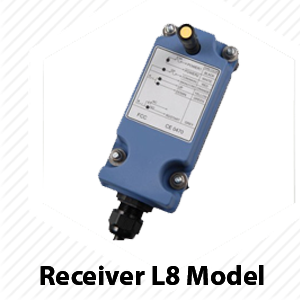

Receiver Unit
- L x W x H: 161 x 74 x 52 mm
- Weight: 1,100g (w/out cable)
- Input Voltage: DC type: 12~24V
- Shock resistance
