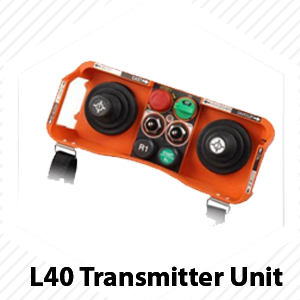

L40 Transmitter Unit
Feature
- Tiny size & very light weight easy for operation Durable, robust IP65(NEMA4) industrial casing.
- 4.1 billion unique ID codes for maximum security.
- Error - eliminated Hamming code technology.
- Working temperature from -45℃ ~ +80℃.
- Long operating distance up to 100M.
- 3 - stage LED battery power indicator.
- Anti - power interruption design.
- Pre - wired receiver for quick and easy installation.
- One axis of joystick could program with maximum 16 relays (Contact: Max. 40-relay outputs).
- Tiny size & very light weight easy for operation.

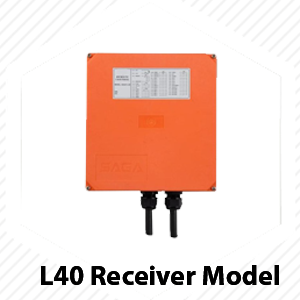

Receiver Unit
- L x W x H: 253 x 267 x 150 mm.
- Weight: 2,400g (exclude wire cable).
- Contact: Max. 40-relay outputs (programmable).
- Input Voltage: 24 / 48 / 110 / 220 / 380 VAC ; 12~36VDC
General Specification
- Frequency Control: Crystal.
- 2 Toggle Switches (A-Both-B or A-Off-B).
- 2 Dual Axis Joysticks (can be Gated).
- Internal Antenna.
- Sensitivity: Approximately -105 dBm.
- I.D. Code: 2 ; more than 4 billion sets (set by factory, never be repeated).
- Operating Temperature: -45℃ ~ +80℃.
- Operation Range: Up to 100 Meters.
- Hamming Distance : ≧ 4.
- 3-stage power indicator.
- One axis of joystick could program with maximum 16 relay outputs.
- Structure: Nylon + Glass Fiber.
- Shock resistance.
- Function programmable
Transmitter unit
- L x W x H: 230 x 95 x 110 mm.
- Weight: 870g (w/batteries).
- Power: 4 AA size batteries.
