L6B Model
Feature
- Durable , robust IP65(NEMA4)
- New light weight (250g) user friendly design
- Advanced RF circuitry design with over 4.1 billion ID coders
- Extremely low Power Consumption - up to 3 months usage with 2 AA alkaline batteries
- Error - free Hamming code technology
- Working temperature range from -45℃ ~ +80℃
- Long operating distance up to 100M
- Purposely designed for the control of high vibration heavy duty Mobile and industrial equipment
- Pre - wired receiver for quick and easy installation
- Remote ID setting technology allowing for instant maintenance at site
- Multi - optional receiver input power. AC type : 24/48, 48/110, 48/220, 110/220, 220/380V & DC type: 12~24V
- Sensitivity: Approximately -105 dBm
Receiver Unit
- L * W * H : 161 * 74 * 52mm
- Weight : 1100g (w/out cable)
- AC type : 24/48, 48/110, 48/220, 110/220, 220/380VAC
- Sensitivity : about - 105 d Bm
- Shock resistance
General Specification :
- Enclosure : IP65(NEMA4)
- Structure : Glass Fiber+Nylon
- Operating Temperature : -45℃ ~ +80℃
- Relay : 5A/250VAC (AC POWER)
- Relay : 15A/12-24VDC (DC POWER)
- ID Code 32 bit
- Hamming distance > 4
- Static > 15 KV
- Remote ID Code Setting
- Operating range : up to 100M
- Function programmable
Transmitter Unit
- L * W * H : 163 * 49 * 45mm
- Weight : 250g (w/batteries)
- 2 AA size alkaline batteries
- Low power indicator ( LED flash red )
- Pushbutton jammed detector
- Shock resistance
- Output power < 4m W
- Normal power consumption : about 10mA
- Sleep mode consumption : less 1 µA
- Modulation : FM
L8B Model
Feature
- Durable , robust IP65(NEMA4)
- New light weight (250g) user friendly design
- Advanced RF circuitry design with over 4.1 billion ID coders
- Extremely low Power Consumption - up to 3 months usage with 2 AA alkaline batteries
- Error - free Hamming code technology
- Working temperature range from -45℃ ~ +80℃
- Long operating distance up to 100M
- Purposely designed for the control of high vibration heavy duty Mobile and industrial equipment
- Pre - wired receiver for quick and easy installation
- Remote ID setting technology allowing for instant maintenance at site
- Multi - optional receiver input power. AC type : 24/48, 48/110, 48/220, 110/220, 220/380V & DC type: 12~36V
- Sensitivity: Approximately -105 dBm

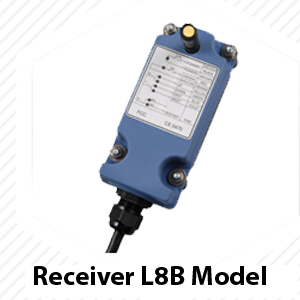

Receiver Unit
- L * W * H : 161 * 74 * 52mm
- Weight : 1100g (w/out cable)
- AC type : 24/48, 48/110, 48/220, 110/220, 220/380VAC
- Sensitivity : about - 105 d Bm
- Shock resistance
General Specification :
- Enclosure : IP65(NEMA4)
- Structure : Glass Fiber+Nylon
- Operating Temperature : -45℃ ~ +80℃
- Relay : 5A/250VAC (AC POWER)
- Relay : 15A/12-24 VDC (DC POWER)
- ID Code 32 bit
- Hamming distance > 4
- Static > 15 KV
- Remote ID Code Setting
- Operating range : up to 100M
- Function programmable
Transmitter Unit
- L * W * H : 163 * 49 * 45mm
- Weight : 250g (w/batteries)
- 2 AA size alkaline batteries
- Low power indicator ( LED flash red )
- Pushbutton jammed detector
- Shock resistance
- Output power < 4m W
- Normal power consumption : about 10mA
- Sleep mode consumption : less 1 µA
- Modulation : FM
