L10 Series Model
General Specification
- Frequency Control: Crystal.
- Low power indicator consumption-around 3 months usage with 2 AA size alkaline batteries.
- Pushbutton jammed detector.
- Operation Range: Up to 100 Meters.
- Operating Temperature: -45℃ ~ +80℃.
- Power consumption: about 10mA.
- Structure: Nylon + Glass Fiber. IP65(NEMA4) industrial casing.

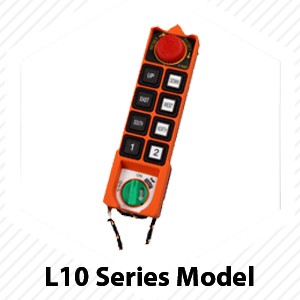

Transmitter unit
- L x W x H: 163 x 49 x 45 mm
- Weight: 275g (w/batteries)
- Power: 2 AA size batteries.
- Rotary Key Switch can be replaced instead of Start Pushbutton.
- Shock resistance.
- Function programmable.
- 4.1 billion unique ID codes for maximal security.
- Error-eliminated Hamming code technology.
- Long operating distance up to 100M.
- Multi-choices in receiver’s power supply: 48/110/220/380VAC & 12~36VDC and mode is available.
- Anti-power interruption circuit.
- Sensitivity: Approximately -105 dBm.
Receiver Unit
- L x W x H: 167 x 154 x 88 mm
- Weight: 1,400g (exclude wire cable).
- Input Voltage: AC type: 24 / 48 / 110 / 220 /380V; DC type: 12~36V.
L12 Series Model
General Specification :
- Frequency Control: Crystal.
- Low power indicator consumption-around 3 months usage with 2 AA size alkaline batteries.
- Pushbutton jammed detector.
- Operation Range: Up to 100 Meters.
- Operating Temperature: -45℃ ~ +80℃.
- Power consumption: about 10mA.
- Structure: Nylon + Glass Fiber. IP65(NEMA4) industrial casing.
- Shock resistance.

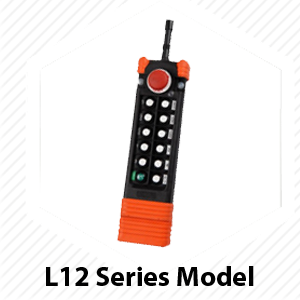

Transmitter unit
- L x W x H: 274 x 77 x 42 mm.
- Weight: 540g (w/batteries).
- Power: 2 AA size batteries.
- Function programmable.
- 4.1 billion unique ID codes for maximal security.
- Error-eliminated Hamming code technology.
- Long operating distance up to 100M.
- Multi-choices in receiver’s power supply: 48/110/220/380VAC & 12~36VDC and mode is available.
- Anti-power interruption circuit.
- Sensitivity: Approximately -105 dBm

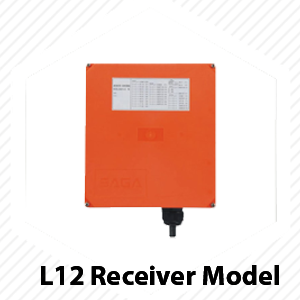

Receiver Unit
- L x W x H: 253 x 267 x 150 mm.
- Weight: 3,000g (exclude wire cable).
- Input Voltage: AC type: 24 / 48 / 110 / 220 /380V; DC type: 12 ~36V.
